Robot Picard
Security of private property and surveillance of areas.
S5.2 PTZ IS Picard

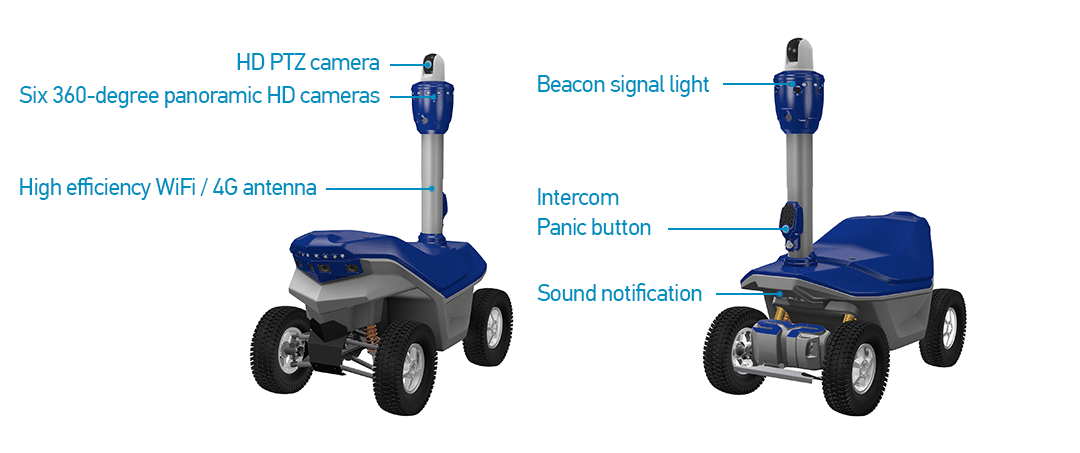

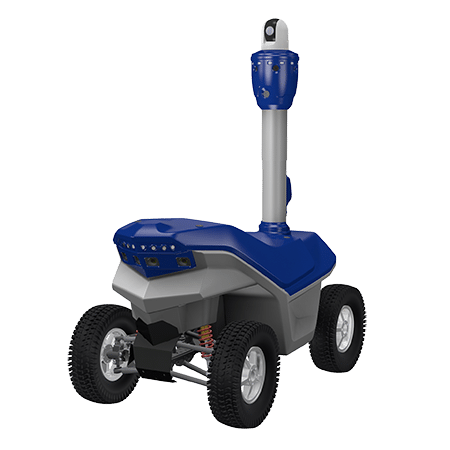

Robot Picard is designed for secure surveillance of private property. It uses an intelligent PTZ camera and six 360-degree cameras to monitor areas both while stationary and in motion. The PTZ camera can detect people up to 100 meters away when stationary, and the on-board system detects people up to 20 meters away while moving.
Its built-in AI handles video analysis and controls patrol routes. For group patrols, it smartly chooses routes to cover more ground efficiently. This AI-driven system offers better security than traditional CCTV and human guards.
Security robots to intelligent video surveillance
The Picard robot is a universal solution for the robotic security of all types of guarded premises. Robotic patrolling with intelligent video surveillance in a 24/7 operating mode is a modern-day solution for critical infrastructure facilities.
The AI Picard robot is capable of recognizing people. When a person is detected in the PTZ camera’s field of view, the on-board video analytics provides the ability to control tracking until an angle appears that is favorable and permits taking a photograph of the person’s face that is suitable for subsequent recognition. This is especially important for large guarded premises where a significant number of people may appear.
When using a group of robots to protect an area, data is accumulated to assess threats throughout the entire time of conducting a patrol. Big Data analysis performed by security robots allows evaluating threats based on their location and time. When choosing patrol routes, AI of each robot identifies the areas that are potentially the most dangerous, and enhances video surveillance along them. This is especially important for large-scale premises at critical infrastructure facilities.
The use of Big Data analysis to enhance security allows identifying deviations from typical human behavior and suspicious events in restricted-access areas. The prediction of potential threats based on AI estimates, as well as operational changes in the positions held by the robots and in their cruise routes, ensures that a very high level of resistance is put up against intruders. With a group of video surveillance robots you can establish several redundant security perimeters and identify alarm situations at the earliest stage.
Deep learning for the video content analytics of robots
The on-board supercomputers in the video content analytics system in Picard robots use deep learning algorithms to detect objects. Their neural networks are capable of distinguishing over 100 types of objects. Above all, this means people, different types of cars, their license plates, and weapons. Selecting objects, and subsequently tracking them with a PTZ camera, allows obtaining high-quality data suitable for further analysis and making objective decisions to assess a threat.
Big Data Surveillance for Law Enforcement
A security robot that has video content analytics and a built-in artificial intelligence group interaction control system is an ideal source of data for a large-scale security system. Accurate video data, with all unnecessary noise and information filtered out, has a scope that is suitable for wireless transmission. Metadata from thousands of security robots patrolling cities and industrial sites will undergo Big Data analysis in the data center. The presence of objective information from various sources will reveal the most subtle correlations, and provide the highest level of accuracy for predicting events to increase public safety.
Suspicious Behavior and Identifying Violent Individuals
One of the objectives that will be fulfilled in the near future using video surveillance robots is detecting suspicious behavior and identifying violent individuals. The combination of intelligent mobile robots and the computing capabilities of data center servers allows instantly detecting aggressive human behavior, recognizing it, and enforcing public safety. A large-scale group of intelligent video surveillance robots can provide total security, with minimal involvement on the part of security officers to maintain it.
Specifications
| Technical specification of the security robot | PICARD |
| Model | S5.2 PTZ IS 2020 |
| Video surveillance cameras | Six HD panoramic cameras 1280х720 0.005lux HD PTZ camera 1920х1080 0.1lux 20x zoom |
| Embedded computer for video analysis | Two T9 |
| The distance of human detection at day: panoramic cameras | 25m |
| PTZ camera | 100m |
| The distance of face detection at day, PTZ camera | 50m |
| Audio communication | IP Intercom with call button, sound notification |
| RF communication | 3/4G, Wi-Fi |
| Range | 24km |
| Speed | 4 – 6km/h |
| Charger | 48VDC 600W |
| IP protection | IP65 |
| Temperature range | -25°C … +55°C |
| Weight with battery | 185kg |
| Dimension | 1420х720х1670mm |
